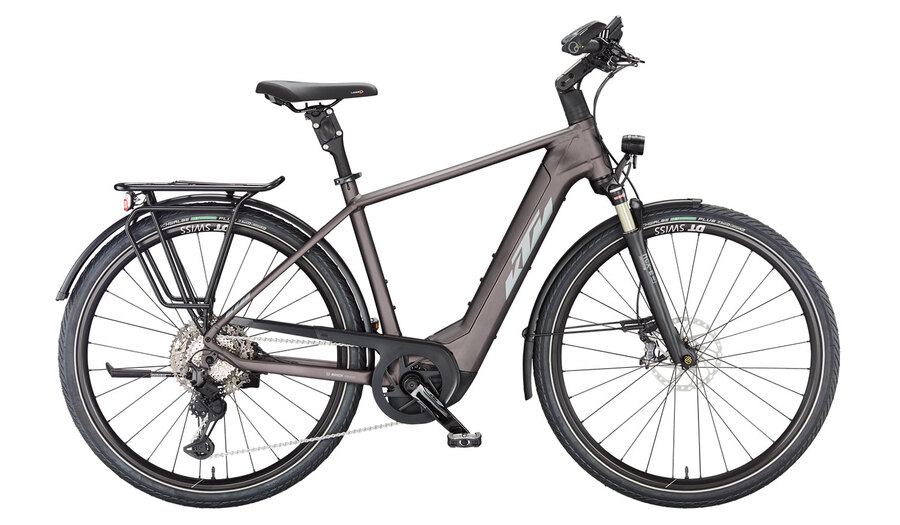

Macina Style 710 KTM Bicycle

4 .830,00 €

Macina Style 710 KTM e-touring bike — Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor – 25km/h, 750 Wh battery, Suntour NCX, Shimano Deore XT.

Frame Size

Clear

KTM-Macina-Style-710-2023 Categories: Cycling, E-bikes, E-Touring

The Macina Style 710 2024 is a touring e-bike from KTM Bike Industries, designed for long rides, cycle touring and everyday use with motor assistance.

The Macina Trekking Onroad Alloy 6061 PT750Wh Bosch Gen.4 / T-2940 frame features the Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor – 25km/h / 85Nm, with a Bosch PowerTUBE 750Wh SMART SYSTEM battery, and is fitted with Suntour NCX-E Air LO front suspension, 63mm travel. The drivetrain is Shimano Deore XT, and the brakes are Shimano Deore XT T8100 / M8120 4-piston.

Fitted with DT Swiss wheels, Schwalbe Energizer Plus Perf tyres, 29″ wheelset. Available in size 51cm.

Highlights:

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor – 25 km/h /
750 Wh battery
Bosch KIOX Display
Macina Trekking Onroad 6061 Alloy Frame PT750Wh Bosch Gen.4 / T-2940
Shimano Deore XT drivetrain
Shimano Deore brakes

See further information on the official KTM Bike website

Brand	KTM
Segment	Bike
Gender	Unisex
Model Year	2024
Wheel size	29"
Frame Size	43 cm, 48 cm, 53 cm
Engine	Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 25 km/h / 85 Nm
Battery	Bosch PowerTUBE 750Wh SMART SYSTEM (horizontal).

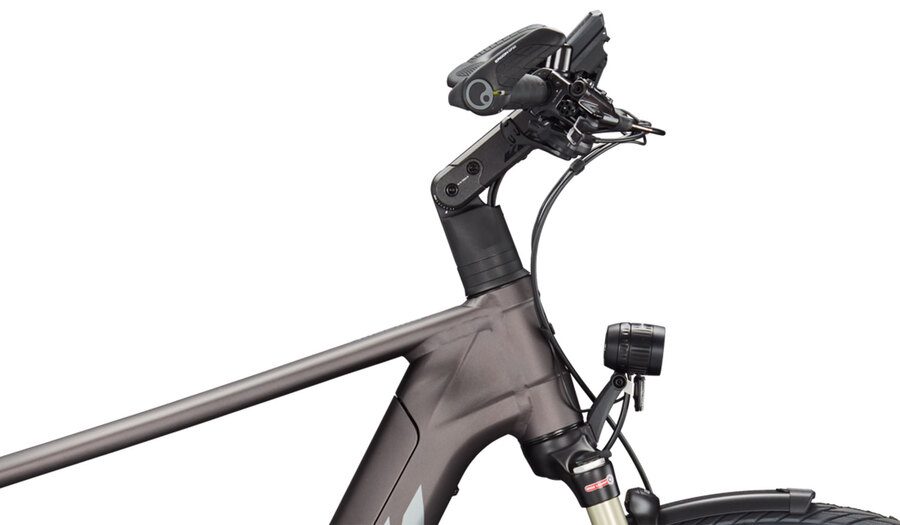

Display	Bosch LED remote SMART SYSTEM with Bosch KIOX 300 TFT Display SMART SYSTEM and
Charger	Bosch STANDARD 4A SMART SYSTEM Charger

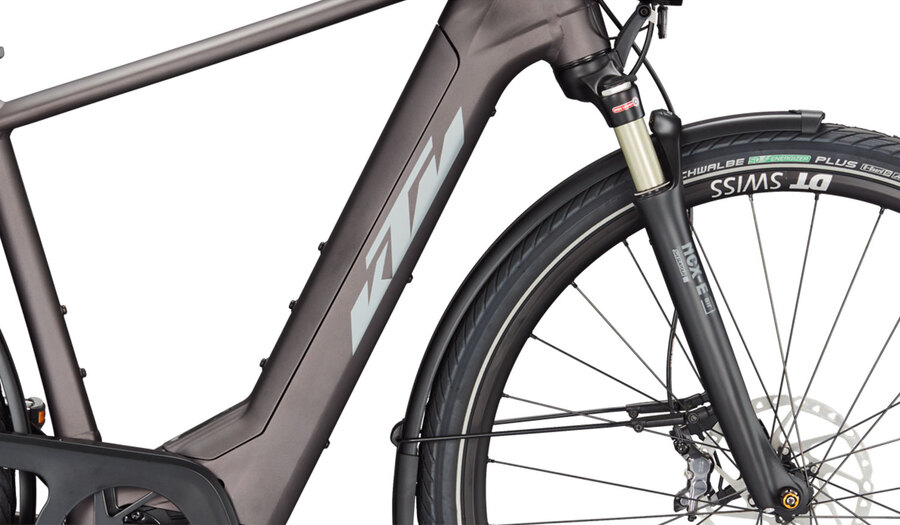

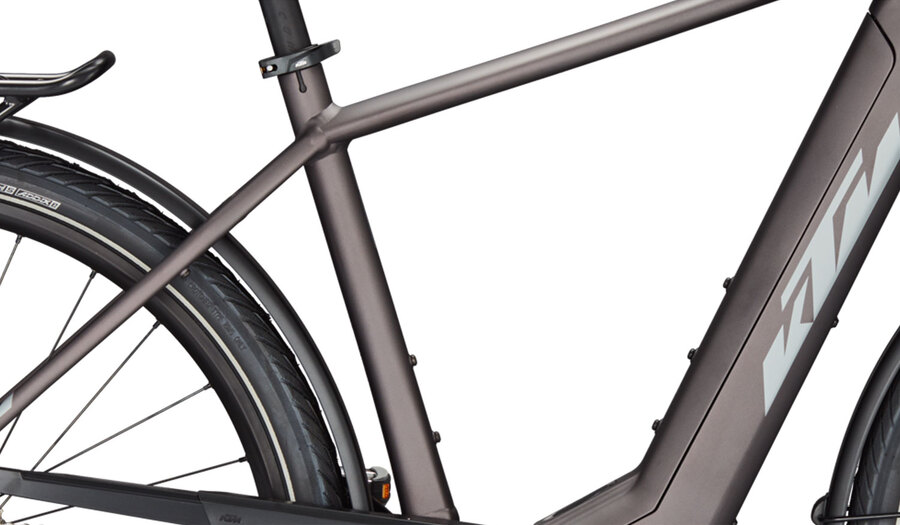

Table	Macina Trekking Onroad 6061 Alloy PT750Wh Bosch Gen.4 / T-2940
Front suspension	Suntour NCX-E Air LO, 63mm travel
Broadcast	Shimano Deore XT M8130-11 LG shadow+
Cassette	Shimano LG400-11 / 11-50
Crankset	KTM E-TEAM ISIS 170mm Q16 with FSA steel 42T Direct Mount chainring
Brakes	Shimano Deore XT T8100 / M8120 4-piston with Shimano RT64 CL 180 / EM600 CL 160mm discs
Wheels	Front wheel: DT Swiss HU 1900 CL, TA100x15mm axle, size 622x25C
Tyres	Schwalbe Energizer Plus Perf. GreenGuard 50-622 / 28*2.00
Espigão	KTM Comp parallelogram 30.9/350 mm
Selim	Selle Royal Lookin+
Handlebar	KTM Line Rizer20, 640mm
Progress	KTM Line adjustment. 0–60° internal
Handles	Shimano Deore XT M8130-11 LG
Manufacturer’s SKU	KL81573
