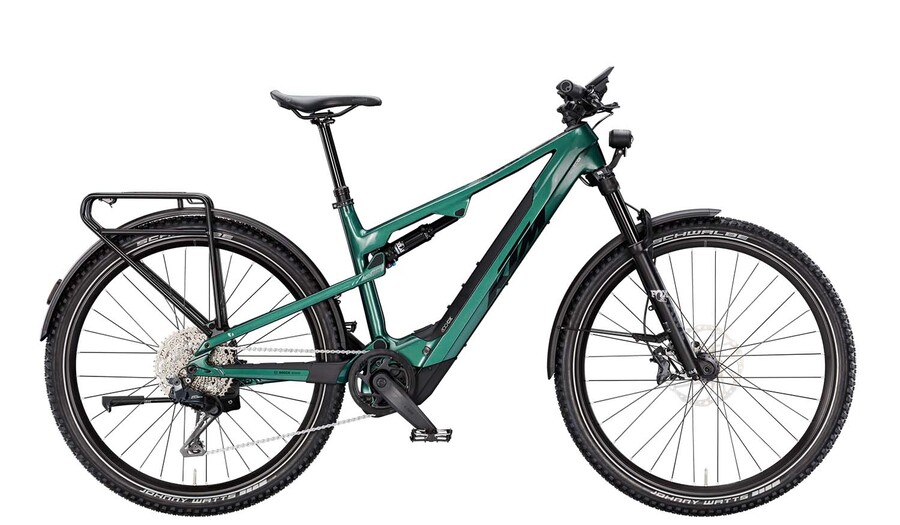

KTM Macina Chacana 891 LFC 25 — overview

1/5

Macina Chacana 891 Lfc 25 KTM Bicycle

5 .399,00 €

Macina Chacana 891 Lfc 25 KTM E-MTB — Bosch PERFORMANCE CX BDU3840 motor (25 km/h / 85 Nm), 800 Wh battery, FOX 34, Shimano CUES Di2 U8050-11 S GS Shadow.

Frame Size

Clear

KTM-macina-chacana-891-lfc-25 Categories: Cycling, E-bikes, Full-Suspension E-MTB

The Macina Chacana 891 Lfc 25 2024 is a full-suspension E-MTB from KTM Bike Industries, designed for demanding trails with full suspension and long-range electric assistance.

The Macina Chacana Al 6061 SLL 125 UDH PT800 Bosch BDU38/M5290 frame features the Bosch PERFORMANCE CX BDU3840 motor (25 km/h / 85Nm, with a horizontal Bosch PowerTUBE 800Wh battery, and is fitted with FOX 34 Float 27.5″ AWL e-bike 130mm 15×110 front suspension. The drivetrain is a Shimano CUES Di2 U8050-11 S GS Shadow, the brakes are Shimano Deore M6100 / M6120 4-piston, with a FOX Float Rhythm 2-position 230×57.5 rear shock.

Fitted with Mavic E wheels, Schwalbe Johnny Watts Perf tyres, 29″ wheel size. Available in size 43cm. Weight 28.9 kg.

Highlights:

Bosch PERFORMANCE CX BDU3840 motor, 25 km/h / 85 Nm
800 Wh battery
Bosch KIOX Display
Macina Chacana Frame, Al 6061 SLL 125 UDH PT800 Bosch BDU38/M5290
Shimano CUES Di2 U8050-11 S GS Shadow drivetrain
Shimano Deore brakes

See further information on the official KTM Bike website

Brand	KTM
Segment	Bike
Gender	Unisex
Model Year	2024
Wheel size	29"
Frame Size	43cm, 53cm
Engine	Bosch PERFORMANCE CX BDU3840 25 km/h / 85 Nm
Battery	Bosch PowerTUBE 800Wh (horizontal)
Display	Bosch LED remote // Bosch KIOX 500 TFT display
Charger	Bosch STANDARD 4A Charger
Table	Macina Chacana Al 6061 SLL 125 UDH PT800 Bosch BDU38/M5290
Front suspension	FOX 34 Float 27.5" AWL e-bike 130mm 15×110
Shock absorber	FOX Float Rhythm 2Pos 230×57.5
Broadcast	Shimano CUES Di2 U8050-11 S GS Shadow
Cassette	Shimano LG400-11 / 11-50
Crankset	KTM E-TEAM2 ISIS 170mm Q8 with FSA steel 36T Direct Mount chainring
Brakes	Shimano Deore M6100 / M6120 4-piston with Shimano RT64 CL 203 / RT64 CL 180 discs
Wheels	Mavic E-Crossride 29 CL 110x15TA; 622x30TSS TLR
Tyres	Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Espigão	KTM COMP II internal dropper post, 34.9, T:125
Selim	Ergon SM10 E-Mountain
Handlebar	KTM COMP Trail35 Rizer 1 5 7 60mm
Progress	KTM TEAM Trail35 with Acros AICR steering head, internal 1.1 /8"-1.5" angle limit
Handles	Shimano Di2 EN605 wireless
Weight	28.9 kg (excluding pedals)
Manufacturer’s SKU	K25520
