KTM Macina Aera 772 LFC US2024 — overview

1/5

Macina Aera 772 Lfc US2024 KTM bicycle

4 .221,90 €

Macina Aera 772 Lfc US2024 KTM E-MTB — Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor – 25 km/h, 750 Wh battery, Suntour XCR, Shimano Deore.

Frame Size

Clear

KTM-macina-aera-772-lfc-us2024 Categories: Cycling, E-bikes, E-MTB

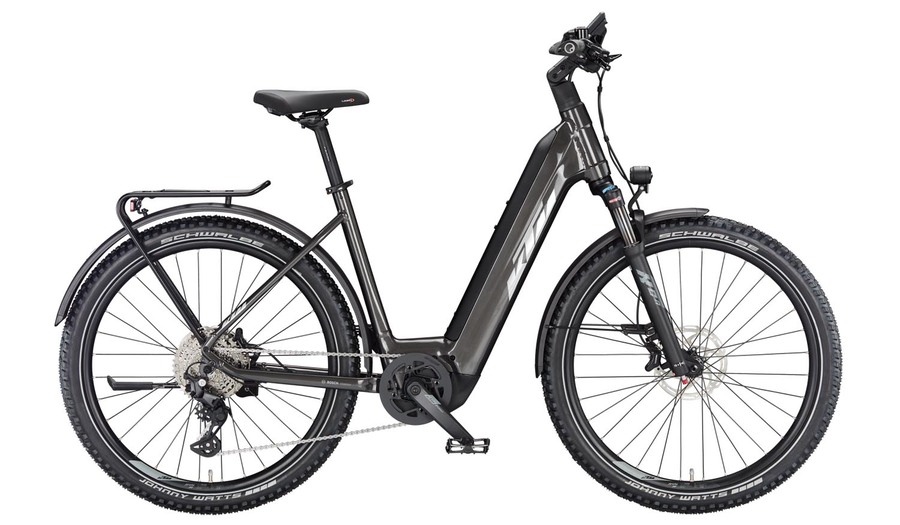

The Macina Aera 772 Lfc US2024 is a hardtail E-MTB from KTM Bike Industries, designed for trails and rides with electric assistance.

The Macina Trekking Onroad Alloy 6061 PT750Wh Bosch Gen.4 / T-2940 frame features the Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor – 25km/h / 85 Nm, with a Bosch PowerTUBE 750 Wh SMART SYSTEM battery, and is fitted with Suntour XCR 34 Air 27.5″ LOR 80 mm 15×110 taper front suspension. The drivetrain is Shimano Deore, and the brakes are Tektro HD-M535 4-piston.

Fitted with KTM Line wheels, Schwalbe Johnny Watts Perf tyres, 29″ wheelset. Available in size US46cm.

Highlights:

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor – 25 km/h /
750 Wh battery
Macina Trekking Onroad 6061 Alloy Frame PT750Wh Bosch Gen.4 / T-2940
Shimano Deore drivetrain
Tektro HD-M535 brakes
Sizes: US 46 cm

See further information on the official KTM Bike website

Brand	KTM
Segment	Bike
Gender	Unisex
Model Year	2024
Wheel size	29"
Frame Size	46 cm
Engine	Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 25 km/h / 85 Nm
Battery	Bosch PowerTUBE 750Wh SMART SYSTEM (horizontal).
Display	Bosch LED Remote SMART SYSTEM
Charger	Bosch STANDARD 4A SMART SYSTEM Charger
Table	Macina Trekking Onroad 6061 Alloy PT750Wh Bosch Gen.4 / T-2940
Front suspension	Suntour XCR 34 Air 27.5" LOR 80mm 15×110 taper
Broadcast	Shimano Deore M5130-10 LG shadow+
Cassette	Shimano LG400-10 / 11-43
Crankset	KTM E-COMP ISIS 170mm Q16 with FSA Megatooth steel 38T chainring and chainguard
Brakes	Tektro HD-M535 4-piston with Tektro TR-45 2.3mm CL 180 / 180 discs
Wheels	Front derailleur: KTM Line – Shimano MT410B CL 32H 110-15TA
Tyres	Schwalbe Johnny Watts Perf. Folding 65-584 DD
Espigão	KTM Team 30.9/300
Selim	Selle Royal Lookin+
Handlebar	KTM Comp Rizer 15 680 mm
Progress	KTM Line adjust. 0–60° internal with Acros AICR steering box, internal 1 1/8"-1.5" angle limit
Handles	Shimano Deore M5130-10 display
Manufacturer’s SKU	KL81542
